PORTAL
The pivot security door that combines design and security for large openings.
When planning your dream home, you probably imagine a comfortable, elegant and, above all, secure place.

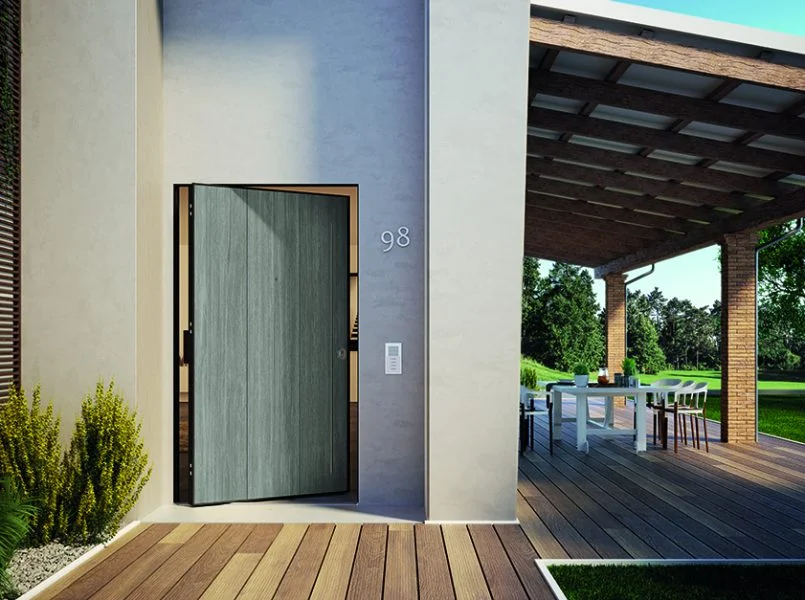

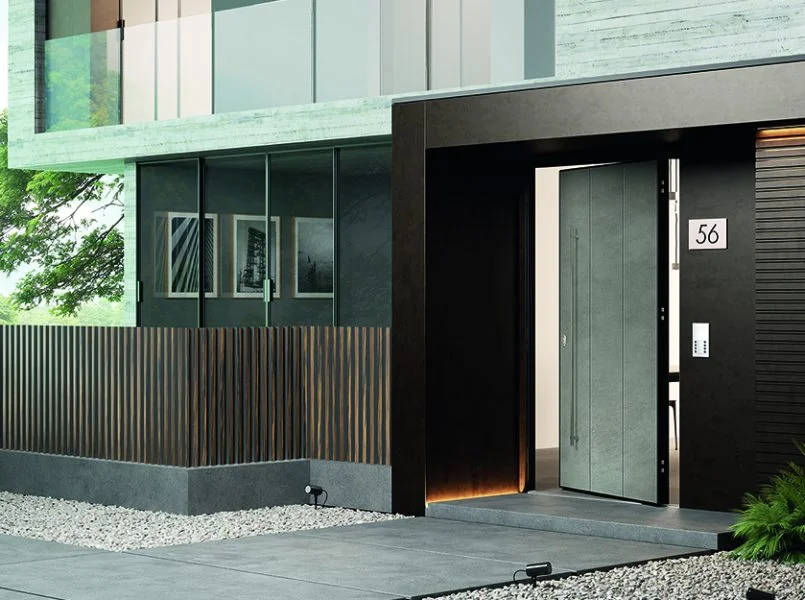

Portal can provide you with all this: it is a pivoting entrance door. It is installed in a tunnel with the frame and has double side bolts on both sides of the leaf.
The high-quality materials, the attention to detail and the elegant and simple design make it an ideal component for furnishing; moreover, thanks to its thermo-acoustic performance and resistance to wind pressure and watertightness, Portal can also be installed outdoors.
The Portal pivot entrance door is available with five installation solutions: standard, in a tunnel with the internal frame for boiserie, in a tunnel with the external frame, in a tunnel with the internal and external frame and for tunnel installation.
Configure your door
1. Pre-frame in 30/10 thick galvanized steel with 12 fixing brackets
2. Frame in 20/10 thick sheet steel, lacquered opaque black Ral 9005
3. Pivoting hinges adjustable on 3 axes
4. Leaf in double electro-galvanized steel sheet 20/10 thick
5. Filling for thermal and acoustic insulation
6. Electromechanical lock with European profile cylinder with 1 site key + 5 keys for the user, supplied with a manganese anti-drill plate.
7. Double side bolts: 2 on the lock side and 3 on the hinge side
8. Aluminum handle kit, silver-colored finish (handle inside + fixed hinge outside), square model
9. Automatic lower and upper plinth and waterproof threshold bar
10. Interior and exterior cladding in 3 vertical pieces of different thicknesses (10 mm for the side segments and 13 mm for the central segment)
11. Predisposition for connecting the alarm system
|
Acoustic attenuation
|
38 dB
|
|---|---|
|
Burglar-proof class
|
Class 4
|
|
Airtightness
|
Class 2
|
|
Resistance to wind pressure
|
Class 3
|
Installation solutions
Steel Frame for Pivot Doors
Electronic lock for swing door
The electronic lock of the swing door opens by several locking systems: APP of the smartphone and tablet Fingerprint reader Digicode with secret code The door can also be opened with the traditional key from the outside and by the handle from the inside.
Mottura BNOVA electronic lock
The security doors of Portes Pivot. with electronic lock come with Mottura Lock, BNOVA model with Bluetooth technology. The lock is a European profile cylinder of the ECCA ICS or 3KS brand. The locking system is both electronic and mechanical, ensuring the unlocking of the door even in the event of a power outage. The lock can be integrated or not with a digital code locking system, Mottura fingerprint reader, interior button or remote control. These devices are also available unwired. The Mottura lock is available with all handle models offered.
High security EVVA 3KS European cylinder
The patented 3KS cylinder without springs is more resistant, unique and requires little maintenance. Unlike traditional cylinders, the pins are pushed by the hollows of the key, rather than by the springs. The modularity of the cylinder allows considerable flexibility and adaptation, directly at the installation site. The reversible key is impossible to reproduce thanks to its round nose and its particular notches. In addition, an additional codification guarantees a high level of security. The 3KS cylinder represents the anti-picking, anti-deciphering, anti-drilling and anti-tearing solution. It is supplied with 3 or 5 keys and a temporary cylinder that will be changed at the end of the installation.
High security EVVA ICS European cylinder
The ICS cylinder offers several techniques for better anti-burglary protection: locking system by the key recesses, by the elongated shape of the robust profile and by the optimized pin system. The modularity of the cylinder allows considerable flexibility and adaptation, directly on the installation site. The reversible key is made of nickel alloy which gives it more resistance and its particular notches prevent any unauthorized reproductions. The ICS cylinder represents the anti-picking, anti-deciphering, anti-drilling and anti-tearing solution. It is supplied with 3 or 5 keys and a temporary cylinder which will be changed at the end of the installation.
Black square exterior knob
Hidden interior kickstand
Black square interior handle for electronic lock
Bequille intérieur pour Portes Pivot
Black square interior handle for Pivot Doors
Square exterior knob
Outer bar
Stainless Steel Square Pull Bar
Black round pull bar
Black square pull bar
Milk white
Bronze
Satin bronze
White satin
Stopsol Bronze
Stopsol clear
Transparent
Laminated wood strips
The installation is planned indoors, protected from atmospheric agents.
Alluminio by Ponzio
The installation is planned indoors, protected from atmospheric agents.
Laminam
Installation is planned outdoors.
Polymers for outdoor installation
Installation is planned outdoors.
Lacquered smooth
The installation is planned indoors, protected from atmospheric agents.
Polymers for interior installation
The installation is planned indoors, protected from atmospheric agents.
Download the documentation
Video
PORTAL swing security door - 3D model
Maintenance of the PORTAL swing door
Installation of the PORTAL pivot door
Adjusting the automatic plinth in the PORTAL swing door
Replacing the European cylinder in the PORTAL swing door
